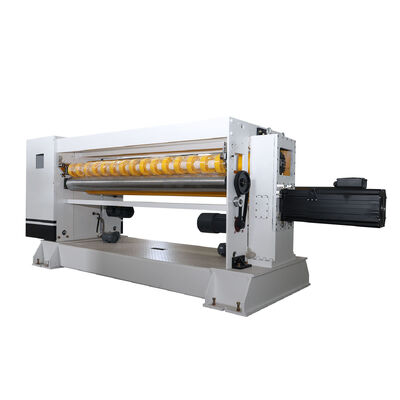

100m/min 5 Layer Corrugated Cardboard Production Line
Advanced PLC control system ensuring consistent production quality with NC cutter precision.
Key Structural Features
- 200-unit order storage capacity for quick cutter specification changes
- Order changes without production stoppage
- Networked computer production management
- Precision forged steel knife shaft drive gears with induction hardening
- Backlash-free transmission with advanced keyless connection
- Inlaid front steel blade knife with spiral structure for extended blade life
- Sun gear platen mechanism for smooth material delivery
- Braking energy storage system reducing electricity consumption by over 70%
- Independent oil pump and filter lubrication system
- High-quality forged steel knife roller for optimal balance and stability
Roller Diameter Specifications
| Distance across knife shaft center |
￠216mm |
| Diameter of lower conveying roller before cutting |
￠156mm |
| Diameter of lower conveying roller after cutting |
￠156mm |
| Diameter of front platen roller |
￠70mm |
Note: All rollers (except those under knife shaft) receive hard chrome plating after grinding for enhanced durability.
Power Motors and Electrical Parameters
| Main drive motor power |
18.5 KW (Full AC synchronous servo) |
| Feeding motor power (before and after) |
3 KW (Frequency control) |
| Lubricating oil pump motor power |
0.25 KW |
Main Components and Materials
| Component |
Brand / Origin |
| Full AC servo motor |
Shanghai Futian |
| Feeding frequency motor |
Hebei Hengshui Yongshun |
| Bearings |
HRB, ZWZ, LYC (Japan NSK for knife roller bearings) |
| Belt |
Germany OPTIBELT |
| Contactors and relays |
France Schneider |
| Proximity switch |
Japan OMRON |
| Motion control board |
Germany MKS-CT150 |
| Feeding drive |
Taiwan Delta |
| Human Machine Interface |
Taiwan WEINVIEW or MCGS |
| Pneumatic components |
Zhejiang SonorCSM |
Applications
The Gerun Corrugated Cardboard Production Line is designed for high-quality 3, 5, and 7 layer corrugated paperboard manufacturing. Available in models 1400, 1600, 1800, 2000, 2200, and 2500, this CE and ISO certified production line delivers exceptional efficiency and reliability for packaging manufacturers, logistics companies, and printing businesses.
Key Specifications: Maximum speed of 100 meters per minute, minimum cutting length of 500mm, maximum cutting length of 9999mm, compact equipment size (Lmx4.2m x Wmx1.2m x Hmx1.4m). Ideal for producing sturdy, reliable packaging materials for shipping, storage, and retail applications.
Customization Options
Gerun offers economical pricing for the Corrugated Cardboard Production Line with precise cutting capabilities (uniform ±1mm, non-uniform ±2mm). Each 3500Kg machine set is securely packaged in plastic and wood. Minimum order quantity: 1 set. Supply ability: 100 sets per year. Delivery time: 20 days. Payment terms: T/T.
Technical Support and Services
Comprehensive support including expert installation guidance, operator training, regular maintenance services, troubleshooting assistance, genuine replacement parts, and customization services to maximize equipment efficiency, reliability, and productivity.
Packing and Shipping
Secure packaging with protective materials, sturdy crates and pallets compliant with international standards. Flexible shipping options (sea, air, land) with real-time tracking and comprehensive documentation. Dedicated logistics team for smooth customs coordination and timely delivery.
Frequently Asked Questions
What brand and models are available?
Gerun brand with models 1400, 1600, 1800, 2000, 2200, and 2500.
Where is the production line manufactured?
Hebei Province, China.
What certifications does it have?
CE and ISO certifications for international quality and safety standards.
What are payment terms and delivery time?
T/T payment with approximately 20 days delivery time.
What is the minimum order quantity and packaging?
Minimum 1 set, packaged in plastic and wood for safe transportation.
