Casa /Produtos/máquina cortando da caixa ondulada/MY1500 Automatic High Speed Precision Cutting Die Cutting Machine for Corrugated Cartons

MY1500 Automatic High Speed Precision Cutting Die Cutting Machine for Corrugated Cartons

1 Conjunto
MOQ
To be negotiated
preço
MY1500 Automatic High Speed Precision Cutting Die Cutting Machine for Corrugated Cartons
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Garantia: 1 ano
tipo: Automático
Velocidade: 0-100 partes/minuto
Doença: Novo
Serviço pós-venda fornecido: Suporte on-line, suporte técnico de vídeo
Uso: Papel Cortante
Cor: Branco, cinza
Tipo de embalagem: Plástico, madeira
Informação básica
Lugar de origem: Hebei,China
Marca: GR
Certificação: CE,ISO
Número do modelo: MY1500
Condições de Pagamento e Envio
Detalhes da embalagem: Embalagem de caixa de madeira (opcional) ou embalagem de filme plástico bem embalada
Tempo de entrega: 40-50 dias
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: 10 séries/mês
Descrição de produto
MY1500 Fast Automatic Corrugated Carton Die Cutting Machine
Designed for fast and accurate packaging cutting, the MY1500 High Configuration Full Automatic Corrugated Carton Die Cutting Machine provides advanced die cutting and creasing solutions for the packaging industry, delivering exceptional performance and precision.

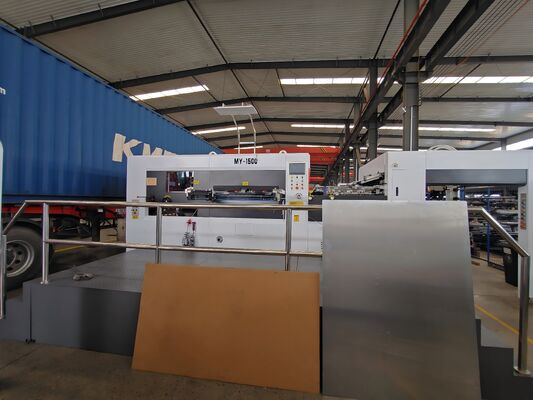

MY1500 Automatic High Speed Precision Cutting Die Cutting Machine for Corrugated Cartons 0
Key Features
A. Feeding and Collecting System
  • Extra feeder processes paper and corrugated board, equipped with BECKER vacuum pump
  • Central monitor installation for easy viewing of back section
  • Pre-paper pile design and special pneumatic bench save significant time
  • Non-stop sampling system enables board accuracy checks without machine stoppage
B. Positioning System
  • Additional brush wheels and pressing wheels for thin paper and corrugated board operation
  • Advanced push and pull lay registration ensures die cutting precision
  • Rikko light front lay detection system prevents slanted paper from entering main body
C. Main Body
  • Automatic centralized lubricating system with main chain lubrication controlled via HMI
  • Patented shock absorption system prolongs main body life and increases pressure capacity
  • Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack
D. Die-cutting and Delivery System
  • Diecutting chase accurately fixed by pneumatic lock system
  • Diecutting plate insertion and removal via air floating device
  • Electric clutch system of main chain ensures steady operation during high-speed stops
  • Main chain and assist chain periodically lubricated via PLC control
  • Protection window maintains main body cleanliness
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains ensure precision
E. Paper Collecting System
  • Back and side aligning paper systems ensure orderly automatic paper feeding
  • Simple structure with quick operation capabilities
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Front machine monitoring of back aligning paper
  • Double detection switch monitors paper order
  • Sampling capability during machine operation
  • Automatic alarm when paper collecting reaches capacity
  • Quantitative paper setting from 10 to 9999 sheets with automatic cutoff at set value
Technical Specifications
Model MY-1500
Die cutting type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max paper transmitting size 1510×1120 mm
Min paper transmitting size 450×400 mm
Max die cutting size 1490×1100 mm
Min gripper size 8 mm
Max die cutting pressure 380 N/cm²
Paper processed Corrugated board: ≤ 7mm Cardboard: 200-2000g/㎡
Max die cutting speed 5000 sheets/h
Min feeding pile height 1250 mm (above the level)
Total power ~19kw
Total weight ~19T
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes full set of maintenance and operation manuals
MY1500 Automatic High Speed Precision Cutting Die Cutting Machine for Corrugated Cartons 1
Our Services
MY1500 Automatic High Speed Precision Cutting Die Cutting Machine for Corrugated Cartons 2
